Capturing tire and shoe profiles

The example below shows how the profile of a sports shoe can be accurately recorded in 3D.

The stereo image was taken with a low-cost digital camera with only 3 MPix resolution and artificially degraded (blurred) in order to simulate poor photographic technique. Photometrix' robust 3D reconstruction algorithms could neverthelesl resolve the structure of the sole with a resolution of 0.5 mm in all directions.



Stereo image of shoe sole

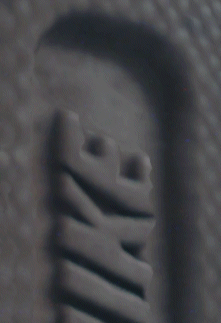

Rendered 3D image (detail)

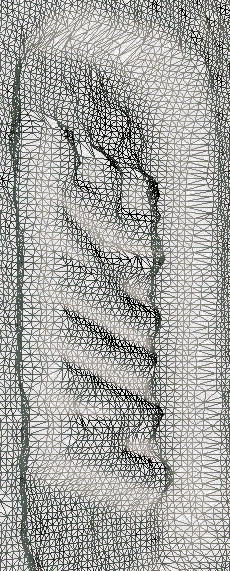

3D wire mesh grid
